Leading Edge® Performance Link

Turn & Spiral BeltsLeading Edge® Performance Link

Leading Edge® Performance Link®

Strongest spiral belt on the market for heavy loads and high volume

  • Trouble free operation
  • No flipping of belt required

Features

  • Open link construction for air circulation and drainage
  • Exceptional strength and stress resistance
  • Largest belt widths for high-volume processing


Advantages

  • Open link construction for air circulation and drainage
  • Smooth product carrying surface equals overall belt width
  • Ability to collapse to a 1.7 turn radius ratio
  • Transports heavier loads at higher speeds
  • Double rows of heavy-duty reinforcing bars three rows of heavy duty links on the outside edge

Tech Specs

  • Widths up to 60" (1520mm)
  • Speeds up to 250fpm (76mpm)
  • Turn ratio: 1.7 – 2.4 x belt width
  • Tension ratings up to 650lbs (294kg)
  • Materials: T316LSS, WRSS, T304SS


Details

Leading Edge® Performance Link® is the strongest turn belt available for high-volume freezing, cooling and proofing lines. For applications requiring extra width plus ability to transport heavier loads at high speeds, they offer the ultimate in carrying capacity and dependability.

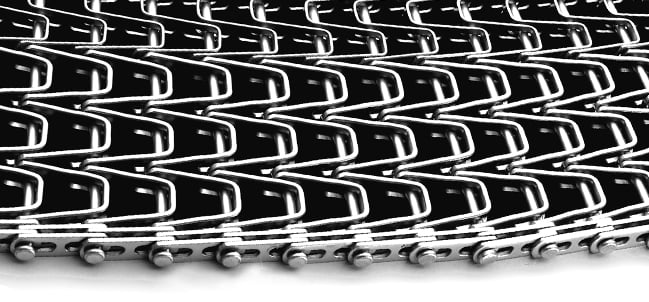

Featuring three rows of heavy-duty links and a double row of extra heavy-duty reinforcing bars along the outside edge, Leading Edge® is engineered to combine exceptional strength and stress resistance with smooth, trouble-free operation year after year. Our design eliminates the need to flip the belt, increasing production time and decreasing downtime and maintenance.

Solutions

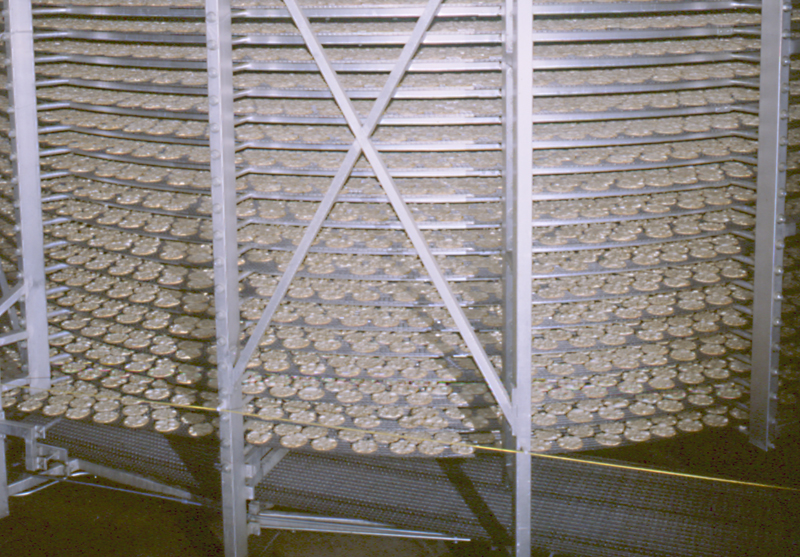

Cambridge's Leading Edge Performance Link belt saved an Idaho potato processor $130,000 annually. Faced with continuous operational issues related to poor belt performance and short (18 month) life, we installed the strongest, best suited belt for their freezer spiral cage application, and expanded belt life to seven years.
