CamEDGE

Turn & Spiral BeltsCamEDGE

CamEDGE

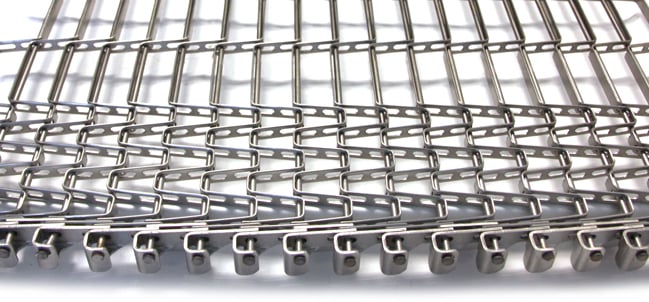

The strongest, EDGE drive spiral system belt

  • Cageless spiral system conveyor belt
  • Designed to minimize footprint
  • Positively driven on the edge

Advantages

  • Cageless design decreases footprint for MFO optimization
  • Variable openings improve sanitation
  • Edge design prevents failure from belt flipping
  • Four custom configurations
  • Improved flexibility reduces costs, placement limitations, maintenance and installation time

Tech Specs

  • Widths up to 48” (1219.2mm) excluding drive link extensions
  • Speeds up to 100fpm (30.5mpm)
  • Turn Ratio: 1.35 – 2.80 x belt width
  • Materials: T316LSS, WRSS, T304SS

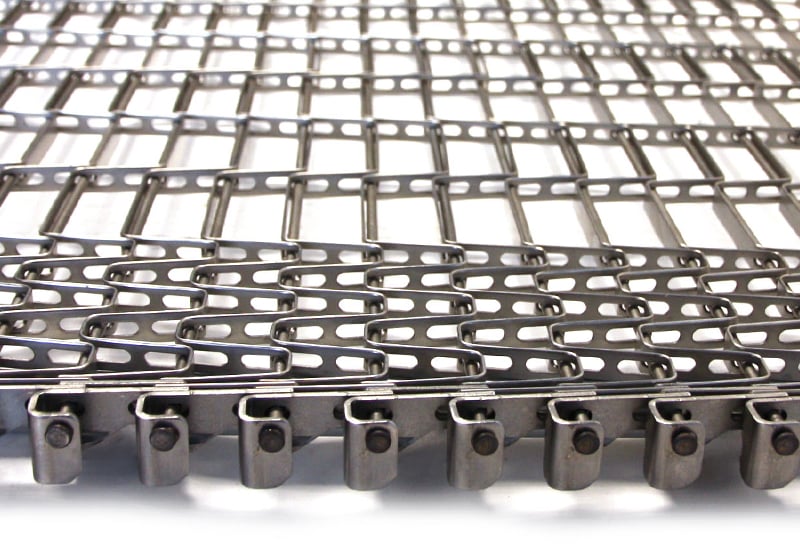

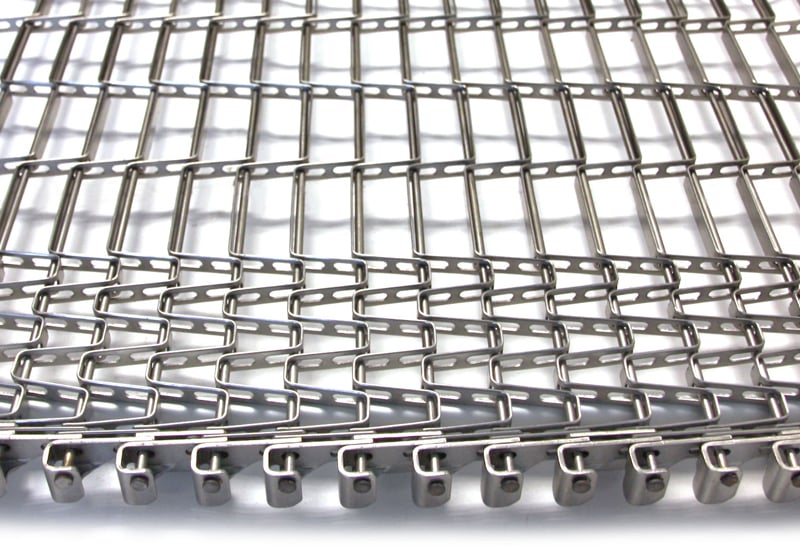

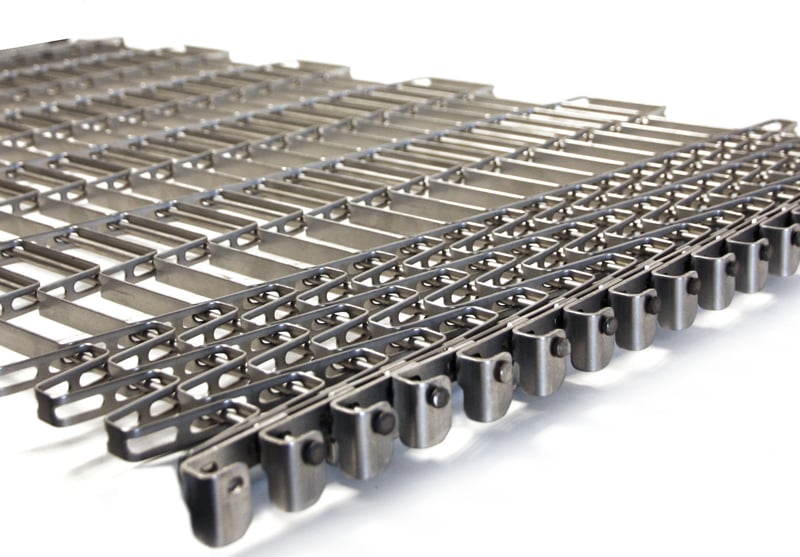

  • Belt Drive Link Construction: Asymmetrical and symmetrical configurations


Details

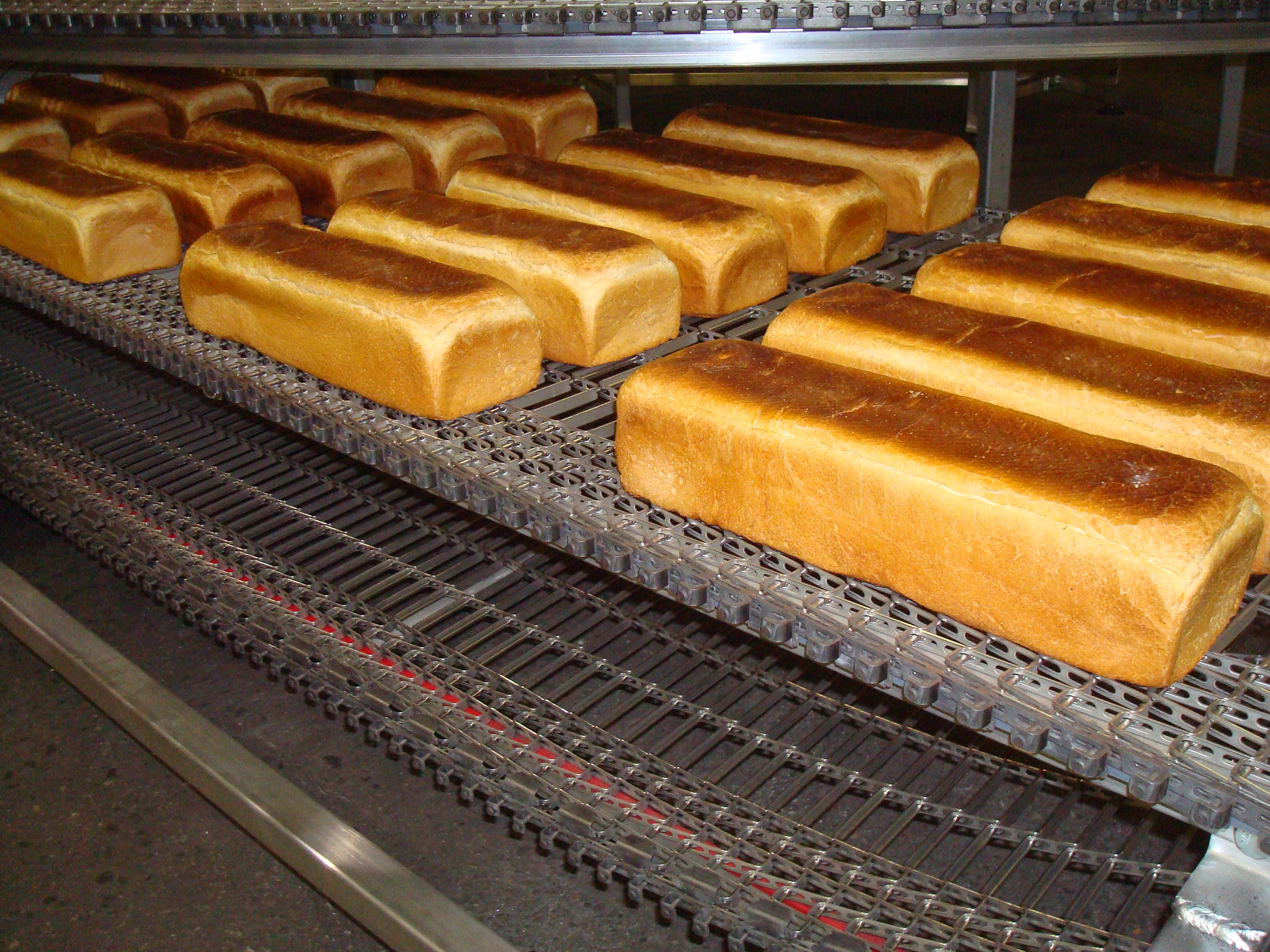

CamEDGE metal conveyor belts are the most advanced spiral conveyor system technology in the market. Their positive EDGE drive and cageless design eliminates risk of catastrophic failure common in traditional systems, such as belt flipping. They've proven exceptional in food processing applications throughout the world. With a positive conveyor sprocket drive, CamEDGE belts provide a smooth, continuous product flow and are gentle with fragile or delicate products. They save money by protecting product quality, increasing throughput, decreasing footprint and reducing waste. CamEDGE can be manufactured in custom configurations including round, oval, In-Low/Out-Low and In-High/Out-High versatility and with variable openings to accommodate any of your product needs. Contact us for special construction features and accessories like lane dividers and edge guards.

Solutions

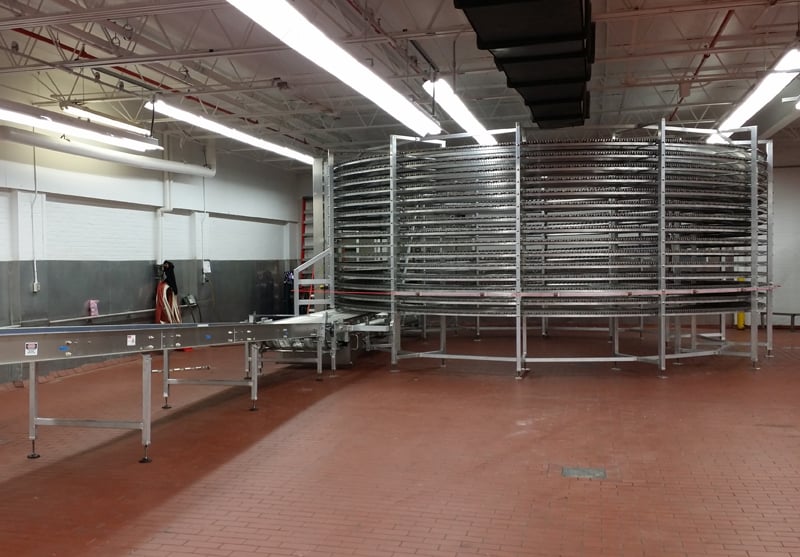

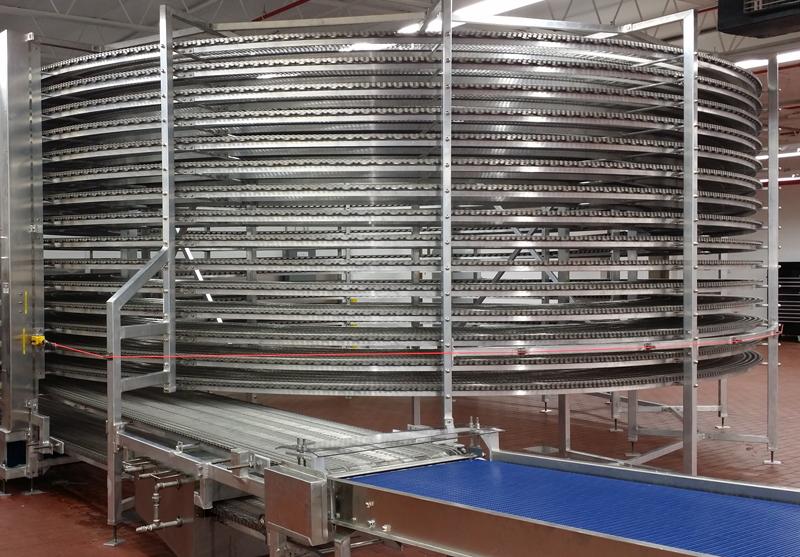

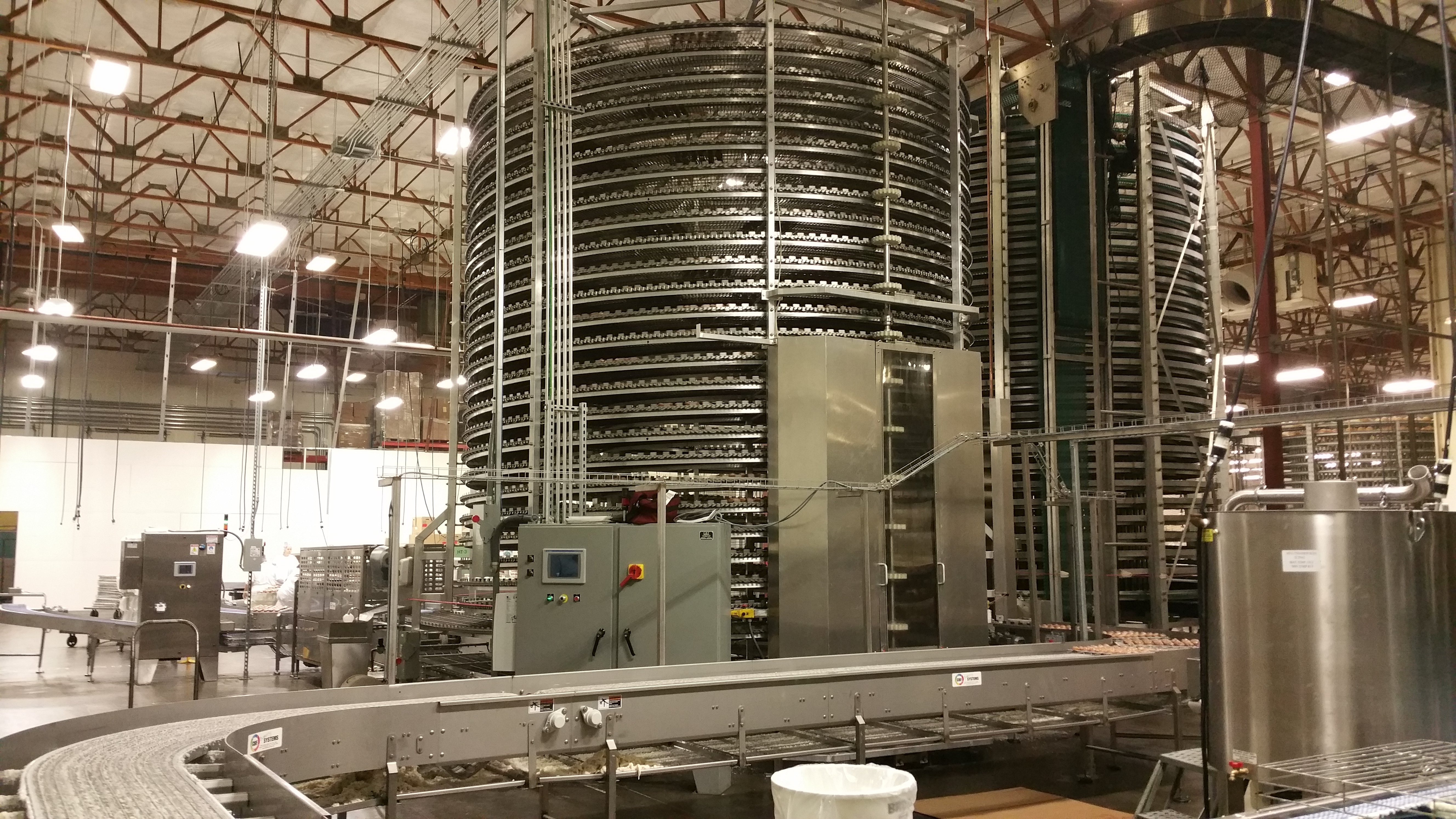

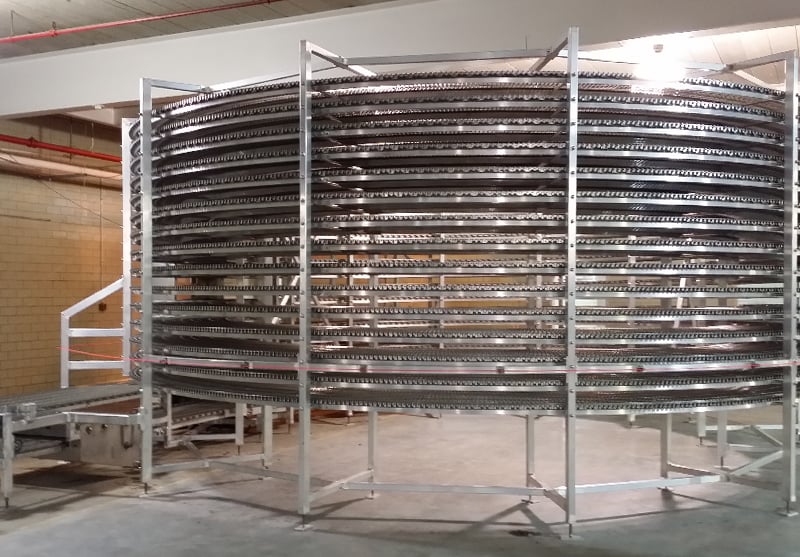

A bakery had limited ceiling height and space in its facility but wanted to expand production within the existing footprint. CamEDGE proved the perfect spiral system to address our customer’s space constraints. The cageless design allows for custom configurations to meet the facility's restrictions. Build in and around existing columns, CamEDGE gave this bakery a manufacturing footprint optimization solution.
