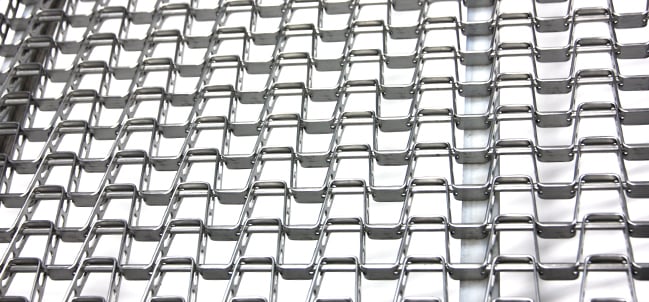

Cambri-Link® New Features

Turn & Spiral BeltsCambri-Link® New Features

Cambri-Link® (Variable)

Durable, efficient belting for spiral cage applications

  • Full customization to meet application needs
  • Balanced airflow for even cooling, draining, & heating

Advantages

  • Customized openings across the width to accomodate product & application needs
  • Standard, reduced or tight radius
  • Eliminate excess belt material and waste to increase product throughput
  • High strength to weight ratio for increased capacity
  • Smooth, flat surface for excellent product stability
  • Minimum maintenance for low operating costs

Tech Specs

  • Widths up to 60” (1524mm)
  • Belt Pitch: 1" (25.4mm)
  • Speeds up to 130fpm (40mpm)
  • Turn ratio: 1.0 – 4.0 x belt width
  • Tension ratings up to 400 lbs (181kg)
  • Materials: T316LSS, WRSS, T304SS


Details

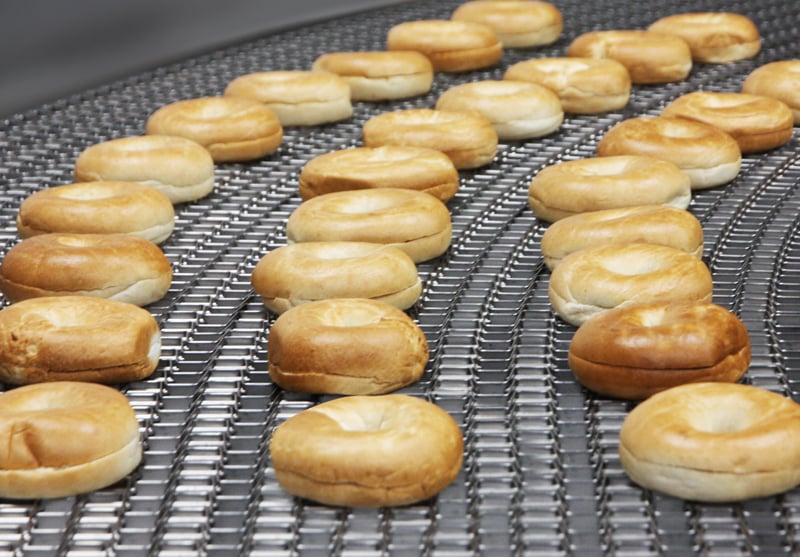

Cambri-Link® spiral system belts are available in standard (2.2), reduced (1.7 or 1.5) and tight (1.0) radius design. Cambri-Link® belts have single or double reinforcing bars. Various combinations of reinforcing bars can be configured to achieve added tension capabilities. Reduced radius belts require no central links or bars to interfere with product placement. Both are ideal for freezing, cooling and proofing applications. They allow bakery products, meat, fish, poultry or packaged specialty products to be processed with space-saving efficiency.
