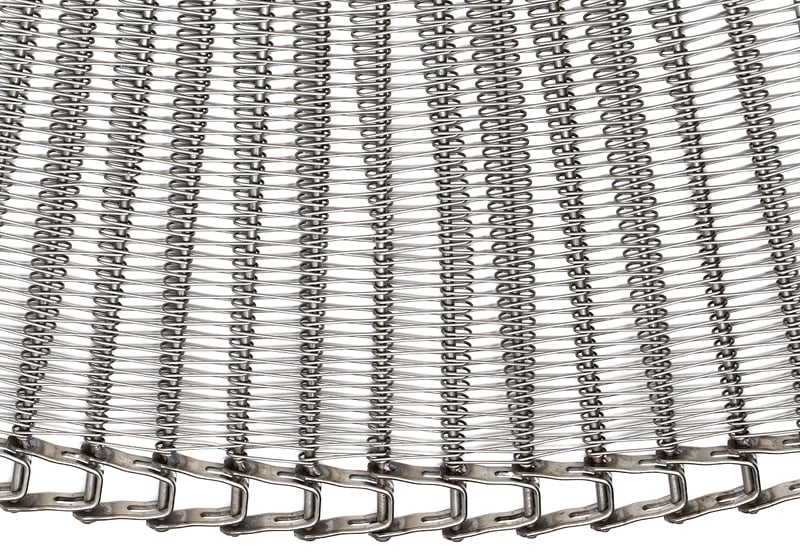

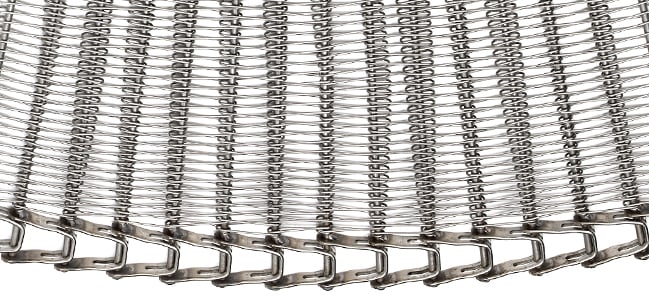

Cam-Grid® Xtra

Heavy-duty turn belt carries more product with less weight

  • Wears evenly for extra-long service life
  • Increased product carrying capacity
  • Available in mesh overlay and rod-only designs

Advantages

  • Trouble-free operation in tough applications
  • Carries more product without extra belt weight
  • Maximizes product throughput in tight spaces
  • Spring temper stainless steel mesh overlays
  • Smooth, flat mesh surfaces offers uniform product support with minimal product marking
  • Fatigue and damage resistance results in long, trouble-free belt life

Tech Specs

  • Widths up to 56” (1422mm)
  • Speeds up to 150fpm (mp)
  • Turn Ratio 1.6 – 4.0 x belt width
  • Tension rating up to 300lbs (136kg)
  • Materials: T316SS, T304SS


Details

Weighing less than Heavy Duty Cam-Grid® and CambriLink® belting, Cam-Grid®Xtra carries more product without sacrificing belt life. Available in a rod-only construction or with a variety of mesh overlays, Cam-Grid® Xtra spiral system belting is tougher, stronger, faster and able to carry heavier loads than any belt in the traditional Cam-Grid®product line makes it a better value.

Designed for superior strength, Cam-Grid®Xtra is made with .225″ diameter high tensile rods 35% more deflection-resistant than our competitors. Super heavy-duty links are more than twice as heavy as standard HD and add to increased durability. An extra-flexible belt, Cam-Grid®Xtra incorporates links that allow the belt to travel with a 1.6:1 turn ratio, making it ideal for smaller-radius spiral cage systems. All Cam-Grid® Xtra belts can be flipped - the only 1.6:1 turn radius belt with this feature - meaning that these belts wear more evenly and provide maximum service life.

Solutions

Minnesota potato processor experienced product loss and downtime issues in spiral freezer due to belt design. We installed our Cam-Grid® Xtra and saved the company $80,000 annually in belt replacement and maintenance cost.
