Metal Modular

Straight Line PositiveMetal Modular

Metal Modular

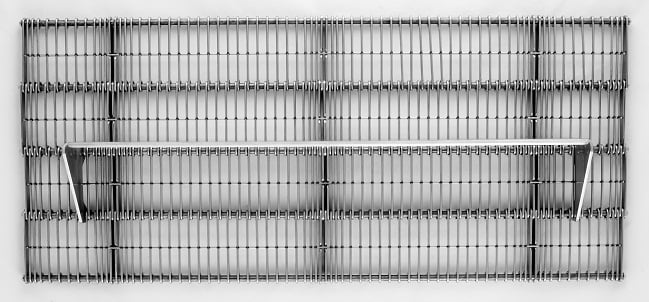

Modular belting in stainless steel for optimal performance

  • Fully customizable
  • Reinforced for heavier loads and impact loading
  • Optimal for food applications and industries

Advantages

  • Fastener free, integrated flight design for strength, belt integrity, and to eliminate risk of product contamination
  • Patent Pending edge technology consists of denser mesh at points of distress to add additional strength and rigidity
  • Exclusive rail match technology allows for drop in retrofit replacements of your current modular style belting
  • Heavy duty option available to withstand harsh applications and heavy product loads or impact

Tech Specs

  • Widths up to 144” (3658mm)
  • Speeds up to 100fpm (31mpm)
  • Temperatures up to 400°F (204°C)
  • Materials: T316SS, T304SS


Details

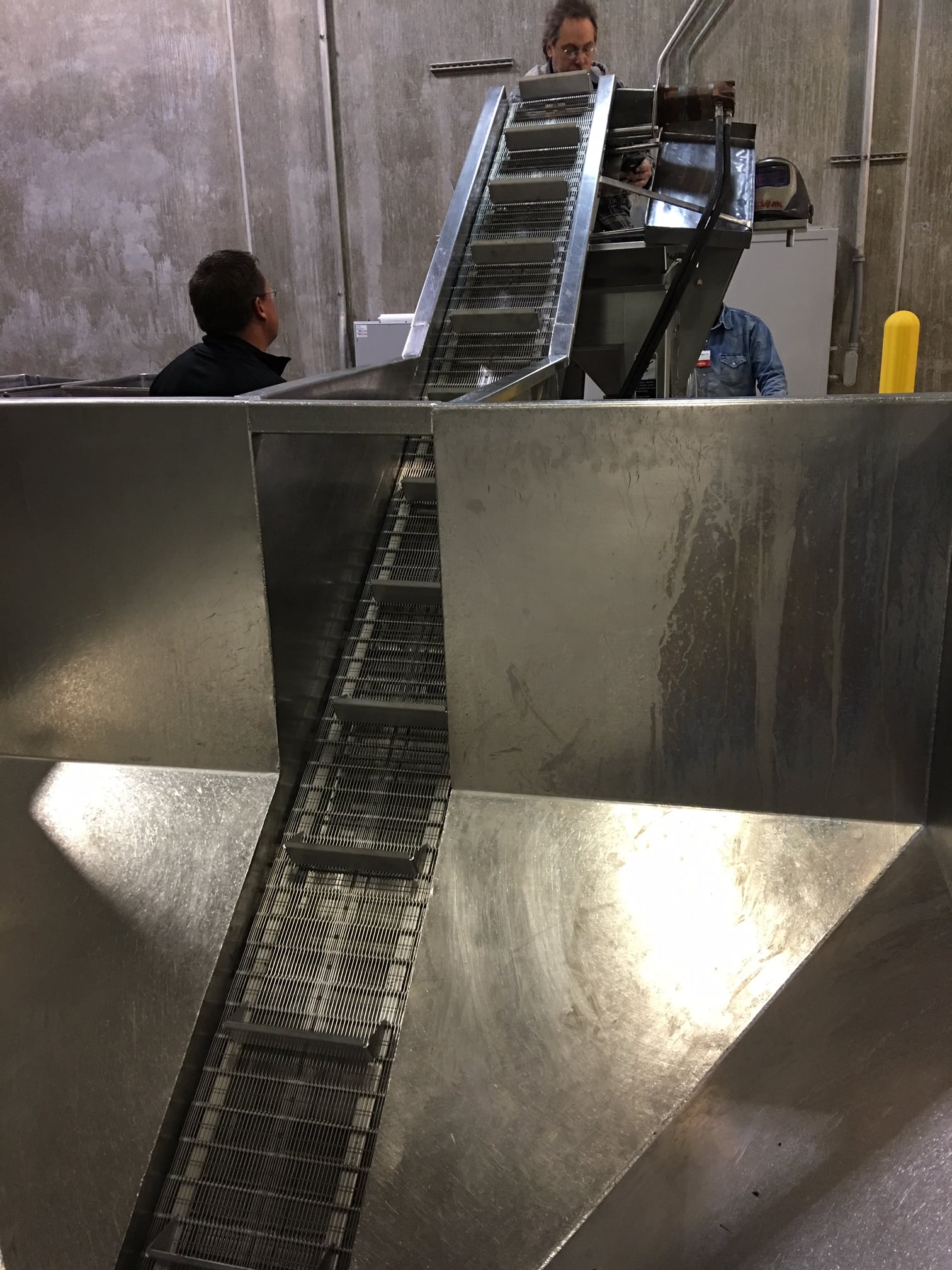

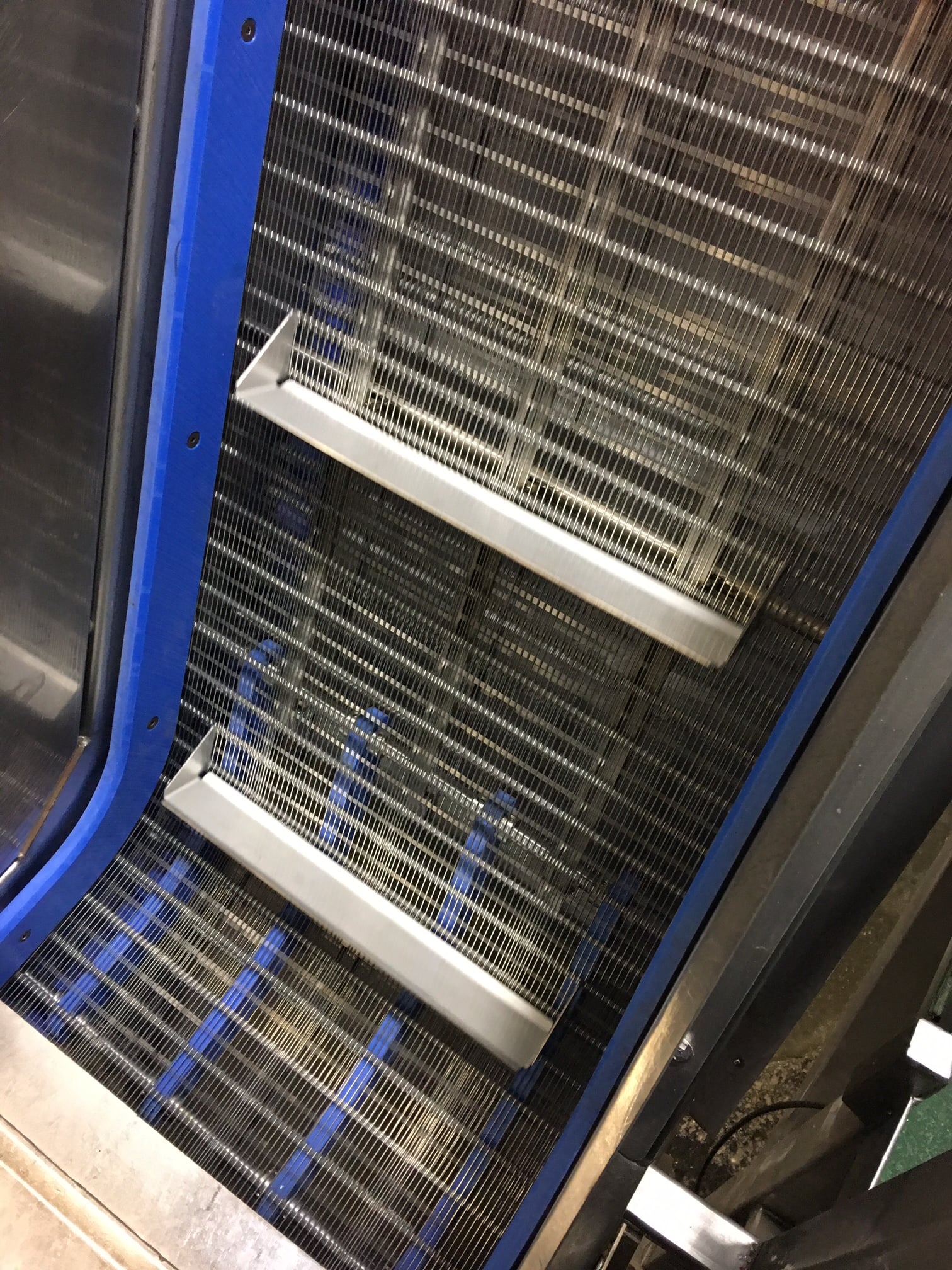

Metal Modular belting is available in customizable pitches to match your current conveyor setup and existing modular belting and is available in a broad variety of mesh opening size to accommodate both product and application needs. Cambridge is able to create a flight option that works the best for your system as well, offering both standard and scoop flights ranging from 1"- 6" in height.  The belt design is robust in nature and will withstand the harshest of environments and sanitation treatments, including those in further processing of poultry.  Ideal applications for Metal Modular include raw and finished products, horizontal and inclined conveying, transfers, cooling, dewatering, washers, dryers, cookers up to 400 degrees, bagging, pastuerizers, and pack-outs to name a few.

The newly reinforced model is 2.5x stronger than the original Metal Modular.  Now made with .098 wire gauge and heavier re-bars, Metal Modular can support greater loads while still offering the same customization options during the manufacturing process.
