Cam-Grid

Straight Line PositiveCam-Grid

Cam-Grid

Lightweight alternative for traditional chain drive applications

  • Available as rods only or with a mesh overlay
  • Protects product loss
  • Collapsible for easy cleaning

Advantages

  • Positive drive ensures smooth product flow
  • Reduces waste, protects quality
  • Gentle with delicate products
  • Easy to clean

Tech Specs

  • Widths up to 75” (1905mm)
  • Speeds up to 80fpm (24mpm)
  • Temperatures up to 1000°F (538°C)
  • Materials: T316SS, T304SS, HCS


Details



Cam-Grid® metal conveyor belts are our most popular, adaptable straight line and spiral cage systems belts. They’ve proven themselves in applications throughout the world. With their positive conveyor sprocket drive, Cam-Grid belts provide a smooth, continuous product flow, gentle with fragile or delicate products. They save money by protecting product quality and reducing waste. Cam-Grid can be manufactured with a double pitch overlay, or with plastic filler rods or strips for supporting small products.

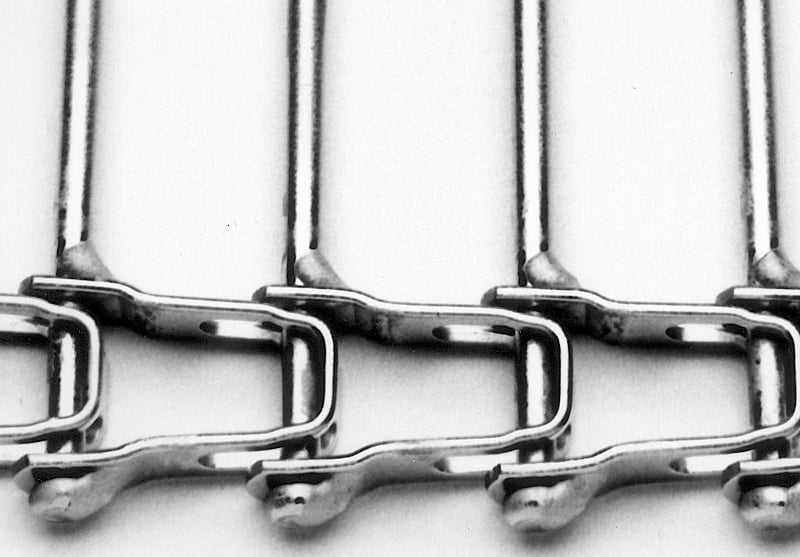

Rods-Only Construction: Provides maximum air circulation, making these Cam-Grid conveyor belts ideal for cookers, proofers and freezers in bakeries. They are also suitable for other applications such as freezing of larger cuts of meat and poultry, and products in trays or packages where minimal product support is required. Mesh overlays constructed with spring temper stainless steel, aids in damage resistance

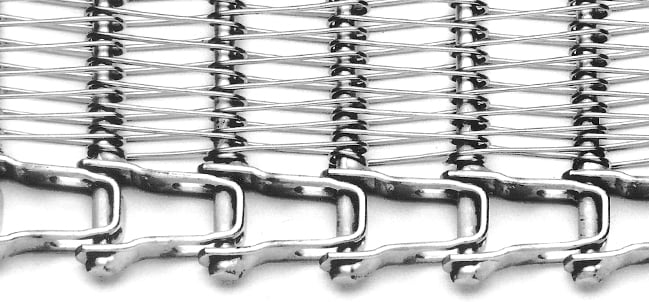

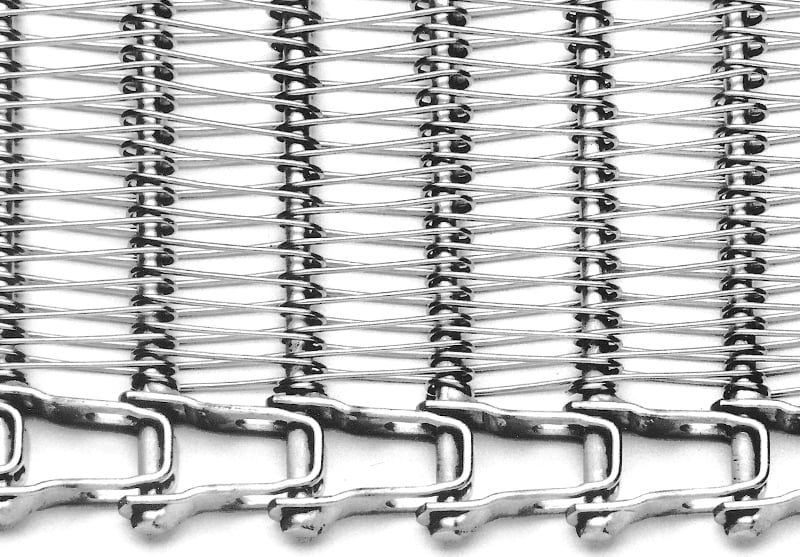

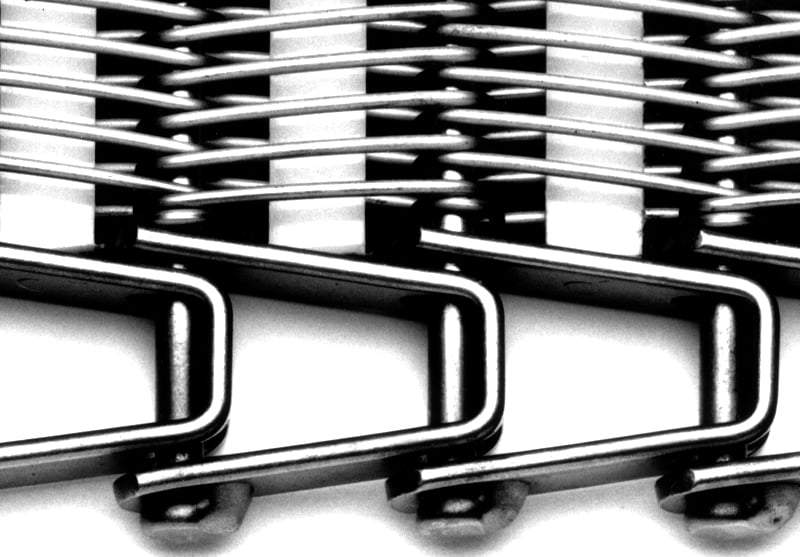

Mesh Overlay: When product support or smaller openings are needed, a balanced weave mesh overlay to the conveyor belt is added. This maintains flexibility while adapting the belt for applications such as freezing soft dough products, beef patties, fish sticks and other prepared products.

Solutions

<p>A meat processor was using another company&rsquo;s belting for their spiral freezer, and they experienced broken links and bent rods within just one month of installation. They upgraded the belting to Leading Edge Performance Grid and it continues to run perfectly after one year.</p>
