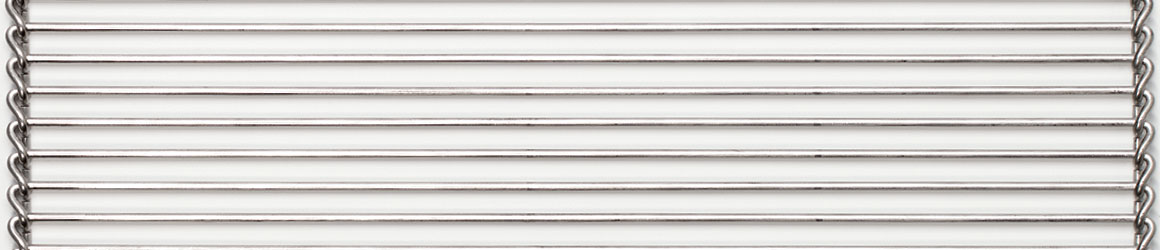

Sani-Grid®Sani-Grid® Belts & Sprockets
- Available for straight line or 45°, 90° or 180° turns
- Flat, uniform surface for gentle product handling
- High strength wire resists stretching and reduces downtime
- Positive sprocket drive
- Smooth edges for easy travel
The lightweight, open design of Sani-Grid® belting makes it an economical choice for many applications. The simple, open design provides efficient operation with minimum maintenance and easy cleanup to meet sanitation requirements, important for products such as breads, rolls, buns, doughnuts, confections, cakes, pies, pastries, light loads of meat, seafood, poultry, and other processed products.
Sani-Grid is available with a choice of 5, 7, or 9 gauge rods. Offset rod flights or welded rod flights are also available for inclines or declines. Additionally, optional U-bar filler rods provide product support. Hinge clips can be used to strengthen the belt (suggested for belts 18″ (457.20 mm) and wider). This belt can be machined from steel, galvanized and stainless steel.
Straight Line Belting
| Belt Specifications | Belt Pitch |
| 5 Ga. | 3/4” (19.05 Mm) |
| 7 Ga. | 5/8” (15.88 Mm) |
| 9 Ga. | 1/2” (12.70 Mm) |
Straight Line Belt Weight
| Belt Width* | 5 Ga. | 7 Ga. | 9 Ga. | ||||
| In | Mm | Lbs | Kgs | Lbs | Kgs | Lbs | Kgs |
| 12 | 304.8 | 2.34 | 3.48 | 1.98 | 2.95 | 1.68 | 2.50 |
| 15 | 381.0 | 2.79 | 4.15 | 2.38 | 3.54 | 2.03 | 3.02 |
| 18 | 457.2 | 3.25 | 4.84 | 2.78 | 4.14 | 2.38 | 3.54 |
| 20 | 508.0 | 3.55 | 5.28 | 3.07 | 4.57 | ||
| 24 | 609.6 | 4.16 | 6.19 | 3.59 | 5.34 | 3.01 | 4.48 |
| 30 | 762.0 | 5.07 | 7.54 | 4.39 | 6.53 | 3.71 | 5.52 |
| 36 | 914.4 | 5.98 | 8.90 | 5.19 | 7.72 | ||
*Many other widths for special applications are available upon request.
Key industries: Food Processing, Quality Control, Packaging
Key applications: Cooking, Cooling, Filling, Icing, Inspecting, Material Handling, Packaging
Sani-Grid® Sprockets
We supply metal and plastic sprockets for use with Sani-Grid straight line belts.
UHMWPE Sani-Grid sprockets were developed specifically for 5- and 7-gauge Sani-Grid belting. Sprockets for straight line Sani-Grid belts are offered in a two-piece design, with stainless steel hubs and screws, and UHMWPE outer sprocket rings. This allows for reuse of the hub and replacement of only the outer sprocket rings, as necessary.
Sani-Grid® Sprockets for Straight Line Belts
| Belt Type | Sprocket No. | No. of Teeth | Belt Pitch | Pitch Dia. | Outside Dia. | Approx Wt. | Bore Size | ||||
| In | Mm | In | Mm | In | Mm | Lbs | Kg | In | |||
| 5 Gauge (.207” 5.26 Mm) |
5-12* | 12 | 3/4 | 19.1 | 2.898 | 73.6 | 3.159 | 80.2 | 1.68 | 0.76 | 3/4 - 1 1/8 |
| 7 Gauge (.177” 4.50 Mm) |
7-11* | 11 | 5/8 | 15.9 | 2.218 | 56.3 | 2.500 | 63.5 | 0.97 | 0.44 | 3/4 - 1 1/8 |
| 7-13* | 13 | 5/8 | 15.9 | 2.612 | 66.3 | 2.875 | 73.0 | 1.22 | 0.55 | 3/4 - 1 1/8 | |
| 7-15* | 15 | 5/8 | 15.9 | 3.006 | 76.4 | 3.250 | 82.6 | 1.60 | 0.73 | 3/4 - 1 1/8 | |
| 9 Gauge (.148” 3.76 Mm) |
9-11 | 11 | 1/2 | 12.7 | 1.775 | 45.1 | 1.938 | 49.2 | 0.57 | 0.26 | 3/4 - 13/16 |
| 9-14 | 14 | 1/2 | 12.7 | 2.247 | 57.1 | 2.500 | 63.5 | 0.90 | 0.41 | 3/4 - 7/8 | |
| 9-16 | 16 | 1/2 | 12.7 | 2.546 | 64.7 | 2.750 | 69.9 | 1.22 | 0.55 | 3/4 - 1 1/8 | |
| 9-19 | 19 | 1/2 | 12.7 | 3.038 | 77.2 | 3.250 | 82.6 | 1.82 | 0.83 | 3/4 - 1 3/8 | |
| 9-25 | 25 | 1/2 | 12.7 | 3.989 | 101.3 | 4.250 | 108.0 | 3.41 | 1.55 | 3/4 - 1 7/8 | |
All sprockets available in T-303 stainless steel. *Also available in UHMWPE. (Sprocket numbers 5-12, 7-13, and 7-15 are two-piece sprockets, with UHMWPE outer ring and stainless steel hubset.)
