Industries

  • Baking, Food Processing, Poultry

Applications

  • Baking, Cooking, Cooling, Freezing, Proofing
Leading Edge® Performance Link
Leading Edge® DuraLite®

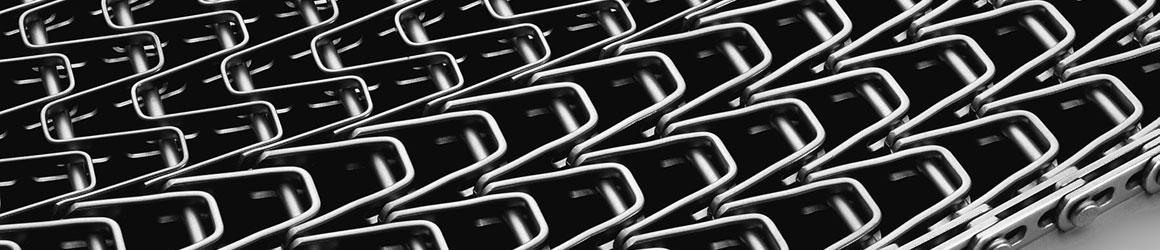

Leading Edge® Performance Link Belt & Sprockets

  • Strongest turn belt available
  • Transport heavier loads at higher speeds
  • Largest belt widths for high-volume processing

Leading Edge® Performance Link is the strongest turn belt available. For applications requiring extra width plus the ability to transport heavier loads at high speeds, Leading Edge Performance Link belts simply can’t be beat. Achieving belt widths that were never possible before, these belts have opened the door for processors to satisfy high-volume production requirements for freezing, cooling and proofing lines.

Featuring three rows of heavy-duty links and a double row of extra heavy-duty reinforcing bars along the outside edge, Leading Edge is engineered to combine exceptional strength and stress resistance with smooth, trouble-free operation year after year. These belts offer the ultimate in carrying capacity and dependability. Their design eliminates the need to flip the belt, thereby increasing production time and decreasing downtime and maintenance.

Leading Edge® belts provide maximum throughput for heavy loads:

  • Open link construction for air circulation and drainage.
  • Overall width up to 60 inches.
  • Effective product carrying surface equals overall belt width.
  • Travels at speeds of 150 feet per minute and higher.
  • Tangential tension rating of at least 600 lbs.
  • Weight-bearing capacity of 15 lbs. per lineal foot and higher.
  • Ability to collapse to a 1.5 turn radius ratio.
  • Double rows of extra heavy-duty reinforcing bars plus three rows of heavy duty links on the outside edge – engineered to be stronger where you need it.

Key industries: Food Processing

Key applications: Freezing

Warranty: 10 year/50,000 duty cycle limited service life warranty.

U.S. Patent: #5,934,448



Leading Edge® Performance Link Specifications

Belt Pitch: 1" (25.4 mm) nominal
Mesh: 1" x 1" or 1/2" x 1"
Materials: Wear-resistant stainless steel (WRSS)
Belt Turning Radius: Down to 1.5 x belt width

Leading Edge® Performance Link Sprockets

Nom. Dia. No. Teeth/Sprocket Designation Overall Dia. Pitch Dia. Hub Dia. (Bottom Dia.) Bore Size Face Width Approx. Wt.
In Mm In Mm In Mm In In Mm Lbs Kg
18E 6.117 155.4 5.617 142.7 2.0 50.8 1.0 - 4.0 2.0 50.8 1.6 0.74
23E 7.875 200.0 7.368 187.1 2.0 50.8 1.0 - 4.0 2.0 50.8 2.9 1.31

Leading Edge® DuraLite®

For applications that need more carrying capacity while still having the benefits of a lighter belt, Cambridge offers new Leading Edge® DuraLite®. Our Leading Edge series offers the strongest belts on the market. The strength-to-belt weight ratio of this product is three times as strong as rod-only belts, and twice as strong as standard 1" x 1" style belts.
