Industries

  • Baking, Food Processing, Poultry

Applications

  • Cooking, Cooling, Freezing, Proofing, Transfers

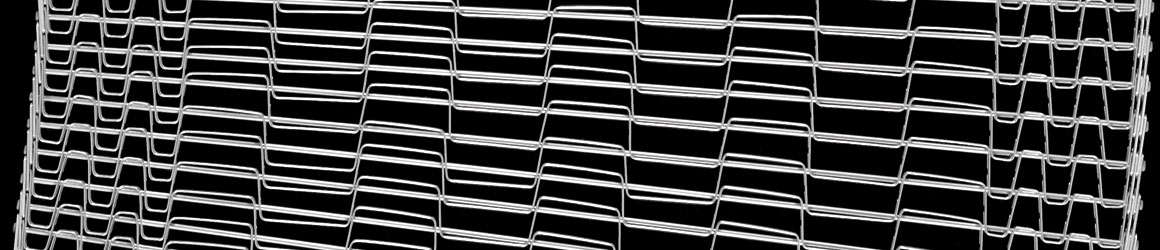

DuraLite®

DuraLite® Belts & Sprockets

  • More carrying capacity
  • Improved efficiency
  • Stronger yet lighter weight
  • Easy to clean
  • Food safe

DuraLite belts really pull their weight for you. They deliver greater load-carrying capacity and smoother operating performance, resulting in dramatically fewer breaks or mishaps – thereby reducing plant downtime and service costs.

DuraLite provides the highest strength-to-belt weight ratio on today’s market – twice as strong as rod-only belts – and 35% stronger than standard 1″ x 1″ style belts. Our unique 3″ x 1″ interior mesh chills and freezes foods faster by improving air circulation and drainage, dramatically improving efficiency.

Additionally, a belt that’s up to 40% lighter means less wear on the belt and cage components, thereby saving energy while greatly reducing potential debris.

With turn ratios ranging from 1.0 to 2.8, DuraLite gives you the widest possible array for any one belt construction allowing one style to work for all spiral cage applications. It is easy to clean and food safe, perfect for breads, pies and tarts, pizza, ice cream and other ready-to-eat foods.

Made from stainless steel, the 3″ x 1″ interior mesh provides twice the open area of modular plastic belts. The sanitary materials used in the construction of DuraLite belts make them the food industry’s best choice for food safety and protection.

Key industries: Food Processing

Key applications: Baking, Cooking, Cooling, Freezing, Proofing

U.S. patent #7,494,005      European patent pending



DuraLite® Specifications

Belt Pitch: 1.33" (33.8 mm)
Mesh Size: 1" x 1" (nominal) on outer edges and 3"x 1" (nominal) in the belt’s interior – two times stronger than rod-only belt designs and 35% stronger than conventional 1" x 1" style cage belts
Extra Heavy-Duty Flat Strip: 1/2" x .0625" (12.7 mm x 1.59 mm)
Extra Heavy-Duty Rods: 6 gauge, 0.192" (5.9 mm) diameter
Outer Edge Construction: Double extra heavy-duty reinforcing bars (standard)
Belt Width Range: 24" to 56" (610 mm to 1,422 mm) overall (standard) … other widths also available
Materials: Wear-resistant stainless steel (WRSS) throughout (standard) … also available in T-304, T-316 or high carbon steel
Welding: Button-head welds on rods
Sprockets: 14 tooth, 6.34" OD, extra heavy-duty sprocket. UHMW material (standard) … stainless and carbon steel also available on request
Special Constructions: Contact us for side-plates, lane dividers and flight availability

Weight of DuraLite® Belts *(Non-Reinforced)

Belt Width Weight per Unit Length of Belt
In Mm Lbs/Lin Ft Kg/Lin M
24 610 4.73 7.04
26 660 5.08 7.56
28 711 5.43 8.08
30 762 5.78 8.60
32 813 6.13 9.12
34 864 6.48 9.64
36 914 6.83 10.16
38 965 7.17 10.67
40 1,016 7.52 11.19
42 1,067 7.87 11.71
44 1,118 8.22 12.23
46 1,168 8.57 12.75
48 1,219 8.92 13.28
50 1,270 9.27 13.80
52 1,321 9.62 14.32
54 1,372 9.97 14.84
56 1,422 10.31 15.34

DuraLite® Rebar Weight Table

Turn Ratio Radius Type Add Lbs/Lin Ft Add Kg/Lin M
1.00 - 1.34 Super-tight 0.30 0.45
1.35 - 1.59 Tight 0.45 0.67
1.60 - 1.99 Reduced 0.50 0.74
2.00 - 2.39 Standard 0.60 0.89
2.40 - 2.80 Oversize 0.67 1.00

Tension Limits for DuraLite® Belts

Belt Material Straight Running Application Turn or Spiral Application
WRSS 850 lbs. per ft. of width 400
T-304 or T-316 650 lbs. per ft. of width 300
Carbon Steel 850 lbs. per ft. of width 400

DuraLite® Sprockets

Nom. Dia. No. Teeth/Sprocket Designation Overall Dia. Pitch Dia. Hub Dia. (Bottom Dia.) Hub Length Bore Size Face Width Approx. Wt.
In Mm In Mm In Mm In Mm In Mm In In Mm Lbs Kg
6 152.4 14T 6.340 161.0 5.991 152.2 5.32 135.1 2.0 50.8 0.937 - 2.5 2.0 50.8 1.8 0.82

Available in extra heavy-duty UHMW and stainless steel.
