Cam-Grid® Xtra Mesh Overlay

Cam-Grid® Xtra Spiral System & Sprockets

  • Trouble-free operation in tough applications.
  • Carries more product without extra belt weight.
  • Maximizes product throughput in tight spaces.
  • Wears evenly for extra-long service life.

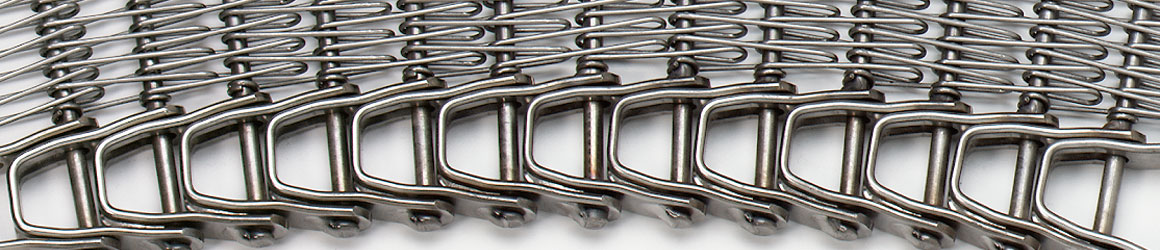

Available in a rod-only construction or with a variety of mesh overlays, Cam-Grid® Xtra spiral system belting is tougher, stronger, faster, and able to carry heavier loads than any belt in the traditional Cam-Grid product line. Yet, gentle handling of fragile products is not sacrificed. With a longer belt service life, greater load-carrying capacity and fewer required belt repairs than traditional Cam-Grid or competitor’s grid style belts, Cam-Grid Xtra is the better value.

Designed for superior strength, Cam-Grid Xtra is made with .225″ diameter high tensile rods that are 35% more deflection-resistant than the rods in competitors’ belts. Super heavy duty links that are more than twice as heavy as our standard heavy duty links also add to the increased durability. These features also make Cam-Grid Xtra belts wear better, handle more tension, require fewer repairs, and last longer than competitors’ belts.

Weighing less than Heavy Duty Cam-Grid and up to 30% less than Cambri-Link® belting, Cam-Grid Xtra carries more product without sacrificing belt life.

An extra-flexible belt, Cam-Grid Xtra incorporates links that allow the belt to travel with a 1.6:1 turn ratio, making it ideal for smaller-radius spiral cage systems. All Cam-Grid Xtra belts can be flipped – the only 1.6:1 turn radius belt with this feature – meaning that these belts wear more evenly and provide maximum service life.

Another aspect of our superior construction is the use of spring temper stainless steel mesh overlays. Advantages include:

  • Exceptionally smooth, flat mesh surfaces offer uniform product support with minimal product marking.
  • Resistance to deformation when products that are frozen to the belt are forcibly removed.
  • Extreme resistance to fatigue and damage results in a long, trouble-free belt life.

Key industries: Food Processing

Key applications: Freezing

U.S. Patents: #6,354,432, #6,360,882 European Patents: #1,192,096



Cam-Grid® Xtra Specifications

Belt Pitch: 1.5" (38.1mm)
Belt Turn Radius Ratio: Standard radius 2.0 – 2.4:1 … Reduced radius 1.6- 2.0:1
(Note: Cam-Grid® Xtra can be flipped – even at 1.6:1 turn radius)
Welds: Standard duty – plasma arc … Heavy duty – double compression
Belt Width Range: Standard duty welds 18"-42" … Heavy duty welds 18"-54"
Materials: Mesh overlay: 16 or 17 gauge spring temper wire

Tension Limits for Cam-Grid® Xtra Belts

Type of Belt Edge Construction Total Allowable Tension
Straight Running Application Turn or Spiral Application
Lbs Kg Lbs Kg
1.5” Super Heavy Duty Link Double Compression Weld 600 272 300 136
1 .5” Super Heavy Duty Link Single Compression Weld 400 182 200 91

Cam-Grid® Xtra Sprockets

A sprocket drive provides a smooth, positive means of driving the belt, serves to keep the belt properly aligned and provides accurate synchronization of belt movement with operations.

No. Teeth/Sprocket Designation Pitch Dia. Bottom Dia. Hub Length Bore Size Sprocket Thickness Approx. Wt.
In Mm In Mm In Mm In In Mm Lbs Kg
13-1.5E 6.44 163.65 5.63 143.03 7.68 179.53 1.0 - 4.0 2.0 50.9 1.6 0.73
18-1.5E 8.88 225.55 8.13 206.50 9.51 241.43 1.0 - 4.0 2.0 50.9 2.9 1.32
